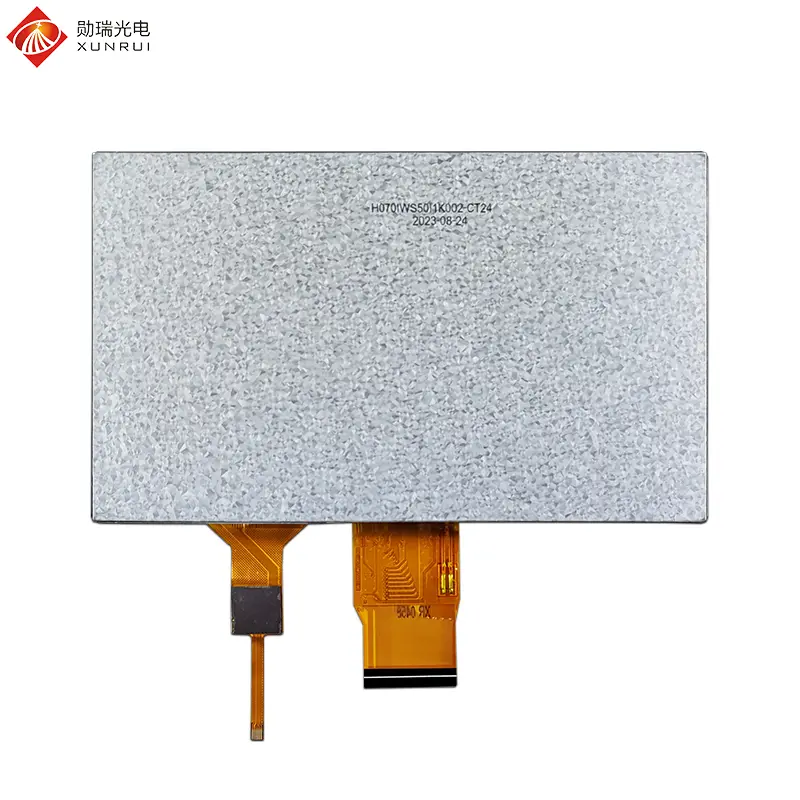

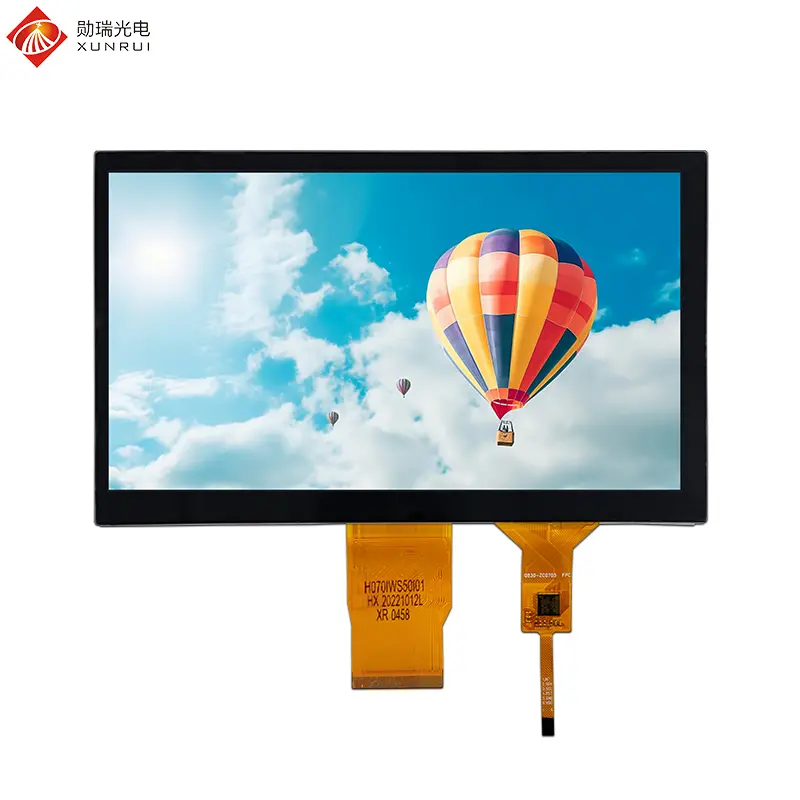

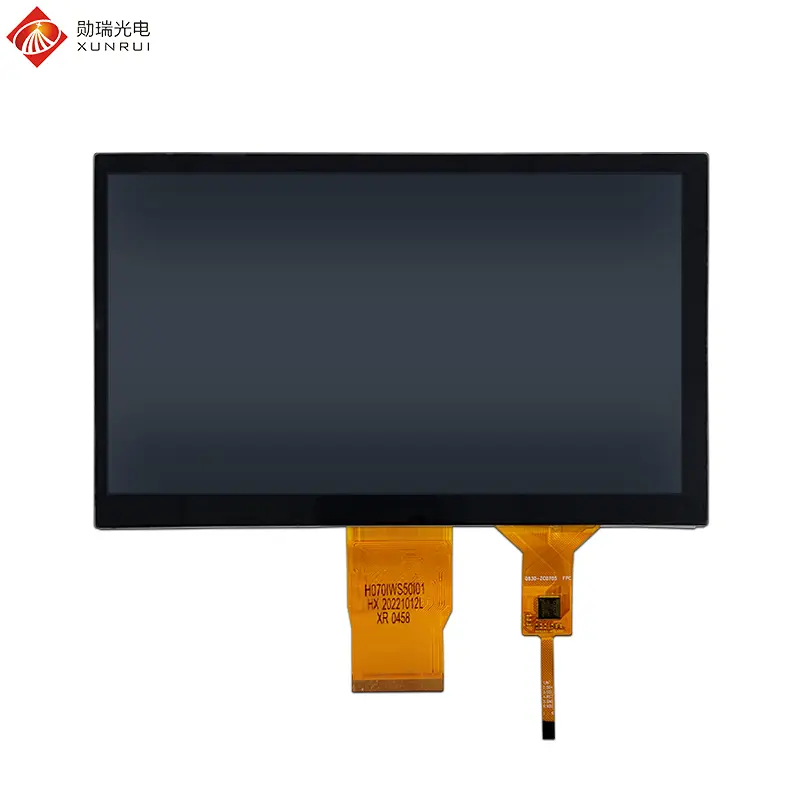

H070IWS50I1K002-CT24 is a 7-inch TFT LCD Display with high brightness, wide operating temperature range, and capacitive touch function. This LCD screen has a wide operating temperature range, capable of withstanding -30℃ to +85℃, meeting the stability operation requirements in extreme climate conditions. It adopts IPS full-view technology, with a visual angle of 178°, accurate color reproduction; it supports anti-glare (AG), anti-reflection (AR), and full-lamination (OCA) processes, enhancing outdoor visibility and durability.
This 7-inch TFT LCD module is mainly used in industrial control and HMI terminals: for PLC controllers, CNC machines, data acquisition systems, etc. Vehicle electronic systems: as the core of vehicle central control, rearview camera, dashboard display. Charging piles and outdoor self-service equipment: high-brightness screen (≥1000nits) ensures clear display under strong sunlight. Medical and portable detection equipment: high-definition display helps data interpretation. Smart home and security systems: used for intelligent control panels and visual access control.
| Feature | Spec |
| Model Name | H070IWS50I1K002-CT24 |
| LCD Size | 7 inch |
| Display Format | 1024×600 |
| Interface | 24-bit RGB 50pin |
| Luminance | 1000 cd/m2 |
| Touch screen | capacitive touch |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |
| Driver IC | HX8282/HX8696 |

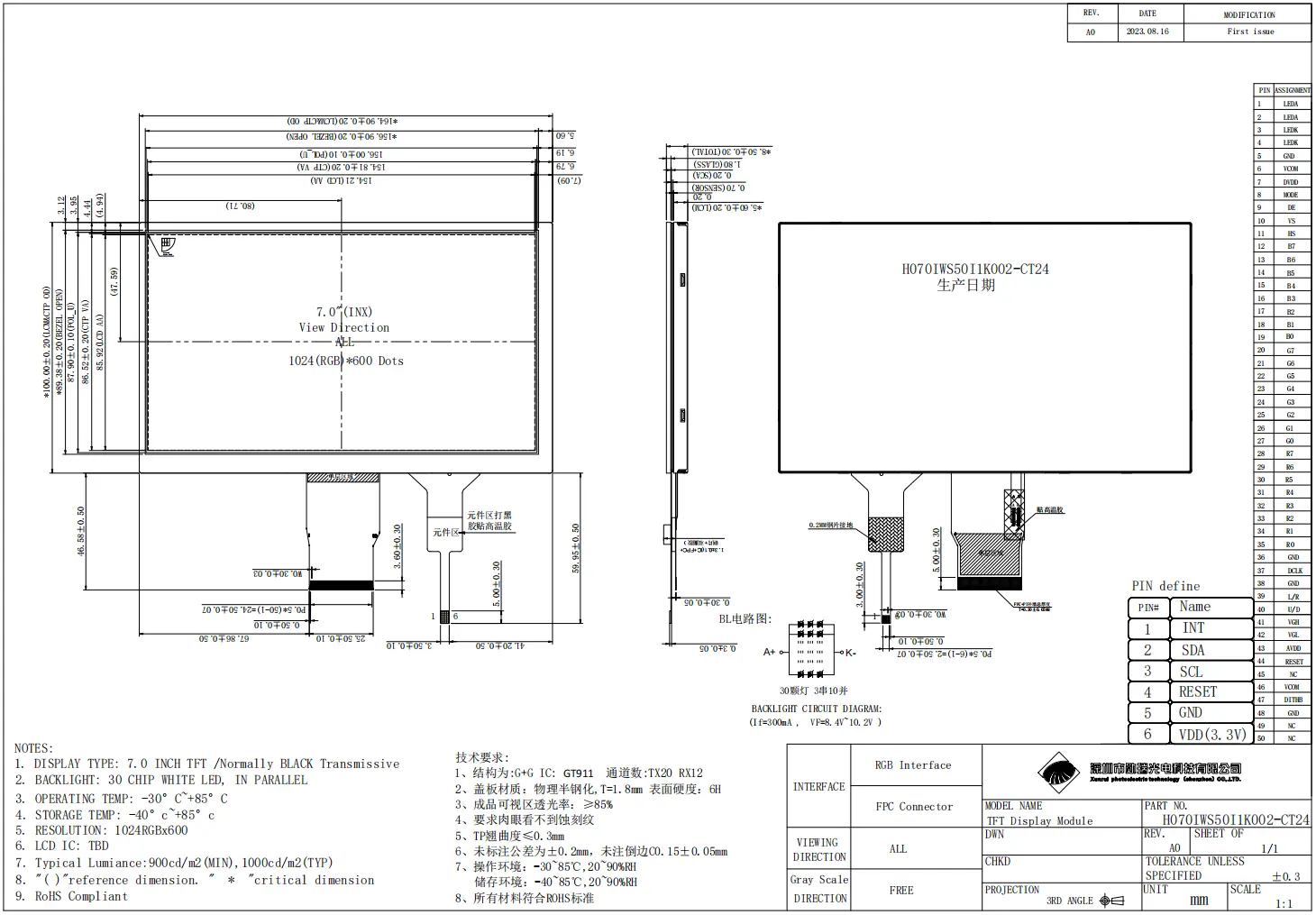

| LCM+CTP (W x H x D) (mm) | 164.9(W)×100(H)×8.5(D) |
| Active Area(mm) | 154.21 x 85.92 |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Operating Voltage | 9V |
| PIN | PIN NAME | DESCRIPTION |
| 1-2 | LEDA | LED backlight (Anode) |
| 3-4 | LEDK | LED backlight (Cathode) |
| 5 | GND | Power ground |
| 6 | VCOM | Common Voltage |
| 7 | DVDD | Digital Power |
| 8 | MODE | DE/SYNC mode select (H: DE mode. L: HSD/VSD mode) |
| 9 | DE | Data Enable signal |
| 10 | VS | Vertical sync input |
| 11 | HS | Horizontal sync input |
| 12-19 | B7-B0 | Blue Data Input |
| 20-27 | G7-G0 | Green Data Input |
| 28-35 | R7-R0 | Red Data Input |
| 36 | GND | Power ground |
| 37 | DCLK | Clock input |
| 38 | GND | Power ground |
| 39 | L/R | Left or Right Display Control |
| 40 | U/D | Up / Down Display Control |
| 41 | VGH | Positive Power for TFT |
| 42 | VGL | Negative Power for TFT |
| 43 | AVDD | Analog Power |
| 44 | RESET | Global reset pin (Active low) |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function enable control |
| 48 | GND | Power ground |
